1J22Nb Soft Magnetic Alloy

1J22Nb is a soft magnetic alloy with extremely high mechanical strength and high saturation magnetic induction. Compared with standard 1J22 strips, 1J22Nb sacrifices part of magnetic performance but significantly improves mechanical strength, making it ideal for ultra-high-speed motor rotors. Its overall performance surpasses Hiperco 50HS, achieving an excellent balance between strength and magnetic properties. Key Properties and Advantages Extremely high mechanical strength High saturation magnetic induction (up to 2.35T) Excellent resistance to cracking during machining Suitable for high-speed rotating and precision motor components Typical Applications Ultra-high-speed motor rotors Aerospace and new energy vehicle drive systems Magnetic couplings and high-performance electromechanical devices Mechanical Properties Tensile strength Rm ≥ 1350MPa Yield strength Rel0.2 ≥ 650MPa Elongation A ≥ 15% Supply Form Specification: strip Condition: cold-rolled, annealed Customization: available upon request Standards: specifications available according to Russian, American, British, French, and Japanese standards

1J27 Soft Magnetic Alloy

1J27 is a Fe-Co-Cr soft magnetic alloy featuring exceptional ductility and toughness, ranking among the most formable materials in the family of high-saturation magnetic induction and high-Curie-temperature Fe-Co based soft magnetic alloys. Its saturation magnetic induction is nearly equivalent to that of 1J22, while offering significantly better mechanical strength and toughness, thus avoiding the brittleness and cracking tendency often seen in 1J22. 1J27 is ideal for applications that demand a combination of high magnetic saturation, excellent ductility, and superior toughness. Key Properties & Advantages High saturation magnetic induction (comparable to 1J22) High curie temperature, suitable for high-temperature magnetic environments Excellent ductility and impact resistance for demanding applications Low magnetic loss and stable magnetic performance Good processability, suitable for both cold and hot forming Typical Applications Cores and rotors for high-speed electric motors Generators and electromagnetic actuators Aerospace and aviation magnetic systems Precision magnetic components requiring both high saturation and toughness Mechanical Properties (Strip Example) Tensile strength Rm ≤ 570MPa Yield strength Rel0.2 ≤ 400MPa Elongation A ≥ 18% Vickers Hardness ≤ 180HV Supply Forms Specification: strip, sheet, and bar Condition: cold-rolled, annealed Customization: available upon request Standards: specifications available according to Russian, American, British, French, and Japanese standards

Aluminum Alloys

Aluminum Alloys – Lightweight, Versatile, High-Performance Materials Key Material Advantages Lightweight and Strong: Approximately one-third the density of steel, with strength enhanced by alloying – ideal for structural components Excellent Workability: Suitable for forging, extrusion, milling, welding, and other processing methods Corrosion Resistance: Naturally forms a protective oxide layer, enhancing durability in atmospheric and chemical environments High Thermal and Electrical Conductivity: Perfect for heat sinks, conductors, and power system components Attractive Appearance and Anodizing Potential: Easily surface-treated to improve aesthetics and corrosion protection Common Aluminum Alloy Series 1xxx Series: Commercially pure aluminum, excellent conductivity and corrosion resistance 2xxx Series: Aluminum-copper alloys, high-strength structural components 5xxx Series: Aluminum-magnesium alloys, excellent corrosion resistance and weldability, widely used in marine and automotive sectors 6xxx Series: Aluminum-magnesium-silicon alloys, balance of strength and processability, highly versatile 7xxx Series: Aluminum-zinc alloys, ultra-high strength, mainly for aerospace applications Product Forms Available Bars, Plates, Pipes, Strips Forgings: Rings, shafts, discs, customized shapes Custom Machined Parts: According to drawings and specifications Heat Treatment & Surface Finishing: Anodizing, sandblasting, precision polishing, coating, and other treatments Applications Aerospace & Aviation: Aircraft structures, brackets, fuselage panels Automotive & Transportation: Chassis, engine parts, heat exchangers, body panels Industrial Equipment: Machinery frames, structural supports, conveyors Construction & Architecture: Facade panels, window frames, curtain walls Marine & Energy: Boat hulls, offshore structures, conductive components Why Choose Us Support for both small-batch customization and bulk supply Full-process services including forging, machining, and heat treatment Drawing-based production with support for third-party inspection and certification Fast export handling with full support for international logistics and customs clearance Contact us for tailored solutions and competitive offers！

1J22Q Soft Magnetic Alloy

1J22Q is a newly developed material optimized and improved on the basis of traditional 1J22 soft magnetic alloy. It not only retains the core advantage of 1J22 alloy with high saturation magnetic induction, but also achieves significant improvement in mechanical properties. Compared with ordinary 1J22, 1J22Q has higher mechanical strength, effectively reducing the risk of fracture of motor laminations during punching and assembly, and is particularly suitable for high-speed and high-rotation motor applications. Key Properties & Advantages Enhanced magnetic performance: all indicators exceed Chinese Standard GB/T 14986.3-2018 Higher mechanical strength: significantly improves rotor lamination structural strength Improved reliability: reduces fracture risk and extends motor service life High-speed adaptability: suitable for high-speed rotation, ensuring motor stability Typical Applications Aerospace motors High-speed railway traction motors High-performance servo motors and generators Special electromagnetic devices Mechanical Properties (Strip 0.2mm) Tensile strength Rm ≈ 800MPa Yield strength Rel0.2 ≈ 350MPa Elongation A ≈ 8% Supply Forms Specification: strip Condition: cold-rolled, annealed Customization: available upon request Standards: specifications available according to Russian, American, British, French, and Japanese standards

1J22QB Soft Magnetic Alloy

1J22QB is a tough and durable soft magnetic alloy with high saturation magnetic induction. Compared with traditional 1J22, it offers significantly enhanced machinability, effectively minimizing tooth breakage, chipping, and cracking during manufacturing. This alloy retains its core high magnetic performance while improving overall reliability in high-speed rotation and complex assembly environments, making it ideal for demanding motor and precision electromagnetic applications. Key Properties & Advantages High Toughness: reduces part damage during machining and assembly Excellent Machinability: minimizes chipping, cracking, and tool wear, improving production efficiency High Magnetic Performance: maintains superior magnetic induction for advanced motor systems Outstanding Reliability: performs consistently in high-speed and complex operating environments Stable Processing Performance: reliable in stamping, cutting, and heat treatment processes Typical Applications High-speed aerospace motors Railway traction motors Servo motors and generators requiring precision control Electromagnetic devices and specialized motor components Mechanical Properties (Strip 0.2mm) Tensile strength Rm ≥ 300MPa Yield strength Rel0.2 ≥ 270MPa Elongation A ≥ 1.5% Supply Forms Specification: bar Condition: cold-rolled, annealed Customization: available upon request Standards: specifications available according to Russian, American, British, French, and Japanese standards

Stainless Steels

Stainless Steels – Durable, Corrosion-Resistant, and Versatile Key Material Advantages Excellent Corrosion Resistance: Resists rust and chemical attack in various environments including marine, acidic, and high-humidity conditions High Mechanical Strength: Maintains toughness and fatigue resistance across a wide range of temperatures Hygienic and Easy to Clean: Non-reactive with food, pharmaceuticals, and chemicals, ideal for sanitary and medical applications Good Formability and Weldability: Suitable for stamping, bending, machining, and welding, maintaining consistent surface quality Aesthetic Appeal: Offers a clean, modern appearance with various finishes (mirror, brushed, matte) Common Grades Austenitic Stainless Steels: 304 (S30400), 316 (S31600), 321 – Most widely used, combining outstanding corrosion resistance and excellent formability. Ferritic Stainless Steels: 430, 409 – Cost-effective with good resistance to oxidation and stress corrosion cracking. Martensitic Stainless Steels: 410, 420 – High hardness, strength, and wear resistance for industrial and tooling applications. Duplex Stainless Steels: 2205, S31803 – Superior pitting resistance and high strength for harsh chemical and marine environments. Precipitation-Hardening (PH) Grades: 17-4PH (S17400), 15-5PH – Heat-treatable stainless steels with high strength and excellent corrosion resistance. Product Forms Available Bars, Plates, Pipes, Strips Forgings: Rings, shafts, discs, customized shapes Custom Machined Parts: According to drawings and specifications Heat Treatment & Surface Finishing: Anodizing, sandblasting, precision polishing, coating, and other treatments Applications Construction & Architecture: Structural components, facades, handrails, fittings Food & Pharmaceutical Equipment: Tanks, pipelines, sanitary equipment Energy & Chemical Industry: Heat exchangers, pressure vessels, valves, pipelines Automotive & Transportation: Exhaust systems, chassis, engine parts Medical Equipment: Surgical instruments, implants, medical devices Why Choose Us Support for both small-batch customization and bulk supply Full-process services including forging, machining, and heat treatment Drawing-based production with support for third-party inspection and certification Fast export handling with full support for international logistics and customs clearance Contact us for tailored solutions and competitive offers！

Copper Alloys

Copper alloys are widely recognized for their exceptional electrical and thermal conductivity, excellent corrosion resistance, and good mechanical strength. With superior formability and workability, copper alloys are indispensable in electronics, automotive, marine, aerospace, architecture, and precision engineering industries, where high performance and reliability are required.

Copper Alloys PDF

Copper Alloys – Versatile Materials for Precision and Performance

Key Material Advantages

Exceptional Electrical and Thermal Conductivity: Ideal for power transmission, heat exchangers, and electronic components.

High Corrosion Resistance: Performs well in marine, industrial, and chemical environments; resists tarnishing and degradation.

Superior Machinability and Formability: Easily forged, extruded, or machined into complex shapes with high dimensional accuracy.

Antimicrobial Properties: Naturally inhibits bacterial growth, making it suitable for sanitary and medical applications.

Good Strength and Wear Resistance: Select copper alloys (e.g., bronze and beryllium copper) offer high fatigue resistance and excellent mechanical durability.

Common Grades

Brass (Copper-Zinc Alloys): H62, H65, C26000 – Cost-effective, good corrosion resistance, widely used in mechanical parts, plumbing, and decorative applications.

Bronze (Copper-Tin and Copper-Aluminum Alloys): QSn6.5-0.1, C95400 – Renowned for strength, wear resistance, and long service life in heavy-duty components.

Beryllium Copper: C17200, QBe2.0 – Exceptional hardness, high strength, excellent conductivity; widely applied in aerospace, tools, and electronics.

High-Conductivity Copper: T1, C11000 – Superior electrical conductivity, essential for power cables, conductors, and electronic devices.

Cu-Ni Alloys (Copper-Nickel): BFe10-1-1, C70600 – Excellent resistance to seawater corrosion, widely used in marine equipment, condensers, and desalination systems.

Product Forms Available

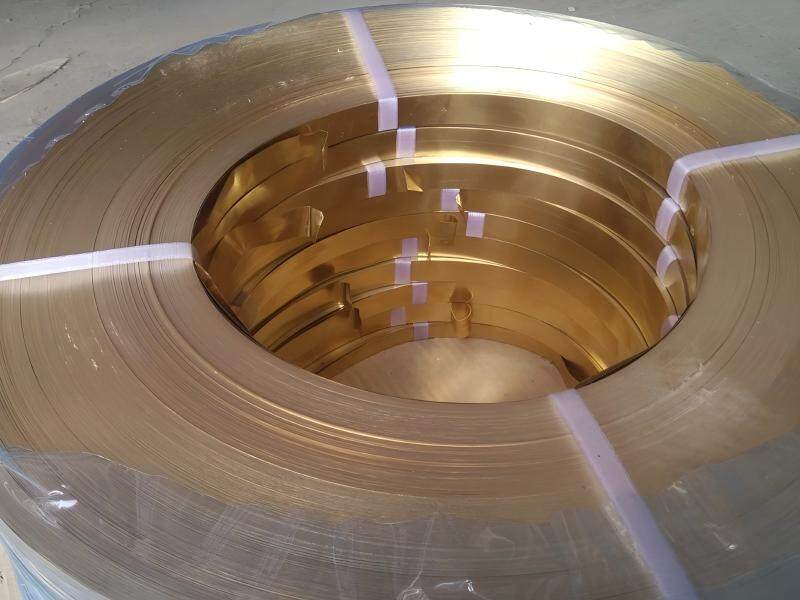

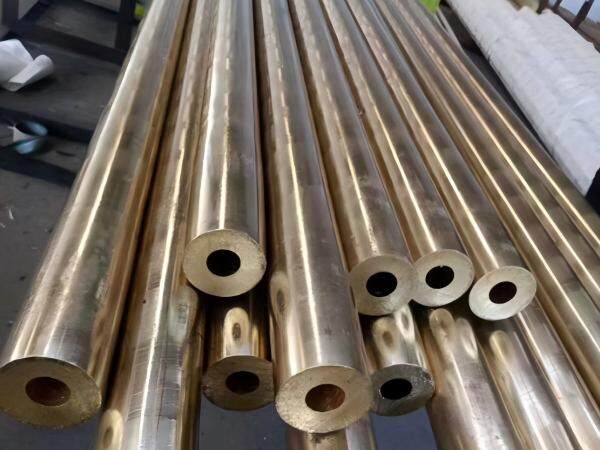

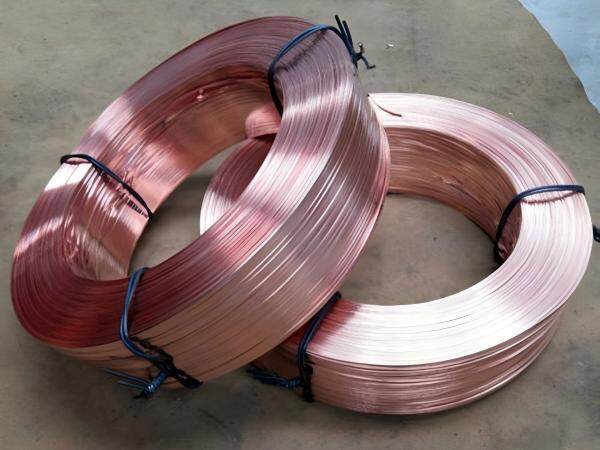

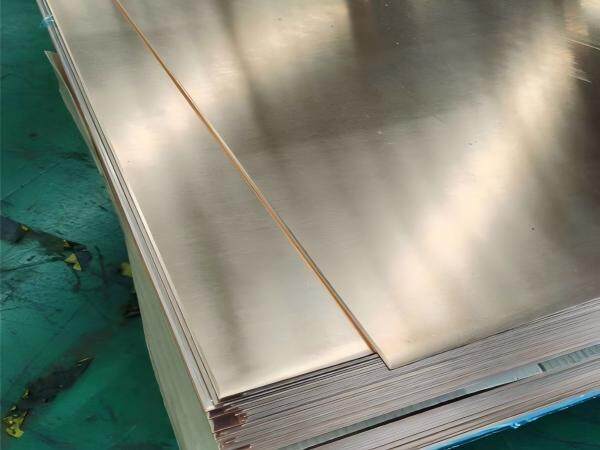

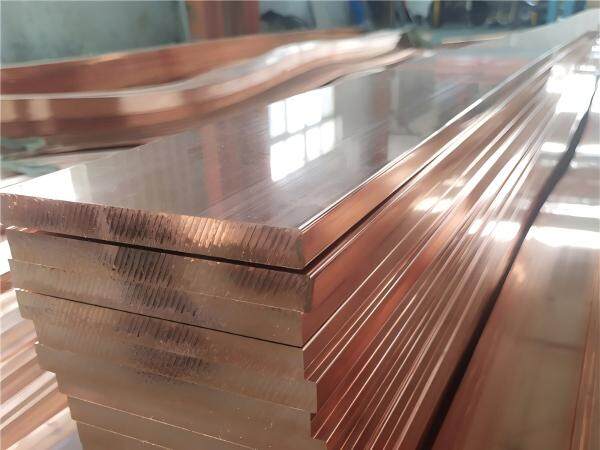

Bars, Plates, Pipes, Strips

Forgings: Rings, shafts, discs, customized shapes

Custom Machined Parts: According to drawings and specifications

Heat Treatment & Surface Finishing: Anodizing, sandblasting, precision polishing, coating, and other treatments

Applications

Electronics: Connectors, terminals, lead frames, conductive springs

Automotive & Transportation: Radiators, brake systems, bearings, bushings

Marine Engineering: Pumps, valves, propellers, seawater piping

Industrial Machinery: Gears, springs, seals, wear-resistant parts, friction-resistant components

Architecture & Construction: Roofing, cladding, decorative elements

Medical & Sanitary Systems: Antimicrobial surfaces, water supply components

Why Choose Us

Support for both small-batch customization and bulk supply

Full-process services including forging, machining, and heat treatment

Drawing-based production with support for third-party inspection and certification

Fast export handling with full support for international logistics and customs clearance
